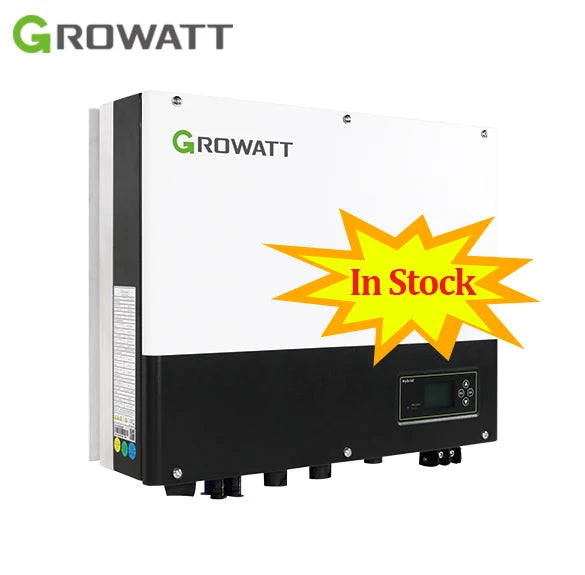

Growatt inverter sph 6000 sph 5000 10kw 3kw 3.6kw 4kw 5kw 6kw growatt 6kw hybrid inverter growatt hybrid inverter 5kw
Application:Hybrid Solar System
Inverter Type:Central Inverter
Quantity:
Products Description
Selection Guide
|
Datasheet
|
SPH 3000TL BL-UP
|
SPH 3600TL BL-UP
|
SPH 4000TL BL-UP
|
SPH 4600TL BL-UP
|
SPH 5000TL BL-UP
|
SPH 6000TL BL-UP
|
||||||
|
Input Data(PV)
|
||||||||||||
|
Max. recommended PV power(for module STC)
|
6000W
|
7200W
|
8000W
|
920000W
|
10500W
|
11200W
|
||||||
|
Max. DV volage
|
550V
|
|||||||||||
|
Start voltage
|
120V
|
|||||||||||
|
MPPT voltage range
|
120-550V/360V
|
|||||||||||
|
Number of MPPT / Strings/MPPT
|
2/1
|
|||||||||||
|
Max. input current/MPPT
|
13.5A
|
|||||||||||
|
Max. short-circuit current/MPPT
|
16.5A
|
|||||||||||
|
Output Data(AC)
|
||||||||||||
|
AC nominal power
|
3000W
|
3600W
|
4000W
|
4600W
|
5000W
|
6000W
|
||||||
|
Max. AC apparent powe
|
3000VA
|
3600VA
|
4000VA
|
4600VA
|
5000VA
|
6000VA
|
||||||
|
Nominal AC voltage (range*)
|
230V/ (180~270VAC)
|
|||||||||||
|
Max. output current
|
16A
|
16A
|
22A
|
22A
|
27A
|
27A
|
||||||
|
AC grid connection type
|
Single phase
|
|||||||||||
|
Battery Data(DC)
|
||||||||||||
|
Battery voltage range
|
42~59V
|
|||||||||||
|
Max charging and discharging current
|
66A
|
75A
|
85A
|
85A
|
85A
|
85A
|
||||||
|
Continuous charging and discharging power
|
3000W
|
3680W
|
4000W
|
4000W
|
4000W
|
4000W
|
||||||
|
Type of battery
|
Lithium /Lead-acid
|
|||||||||||
|
Backup power(AC)
|
||||||||||||
|
Max. AC output power
|
3000W
|
3680W
|
4000W
|
4600W
|
5000W
|
6000W
|
||||||
|
Max. output current
|
17.4A
|
|||||||||||
|
Nominal AC output voltage
|
230VAC
|
|||||||||||
|
Efficiency
|
||||||||||||
|
MAX. efficiency
|
97.2%
|
97.8%
|
97.3%
|
97.4%
|
97.5%
|
97.6%
|
||||||
|
European efficiency
|
97.0%
|
97.0%
|
97.1%
|
97.1%
|
97.2%
|
97.2%
|
||||||
|
General data
|
||||||||||||
|
Dimensions (W / H / D)
|
458/565/188m
|
|||||||||||
|
Weight
|
31KG
|
|||||||||||
|
Protection degree
|
IP65
|
|||||||||||
|
Warranty: 5 years / 10 years
|
Yes/Optional
|
|||||||||||
WHAT CAN WE OFFER YOU
Certifications Zertifizierungen

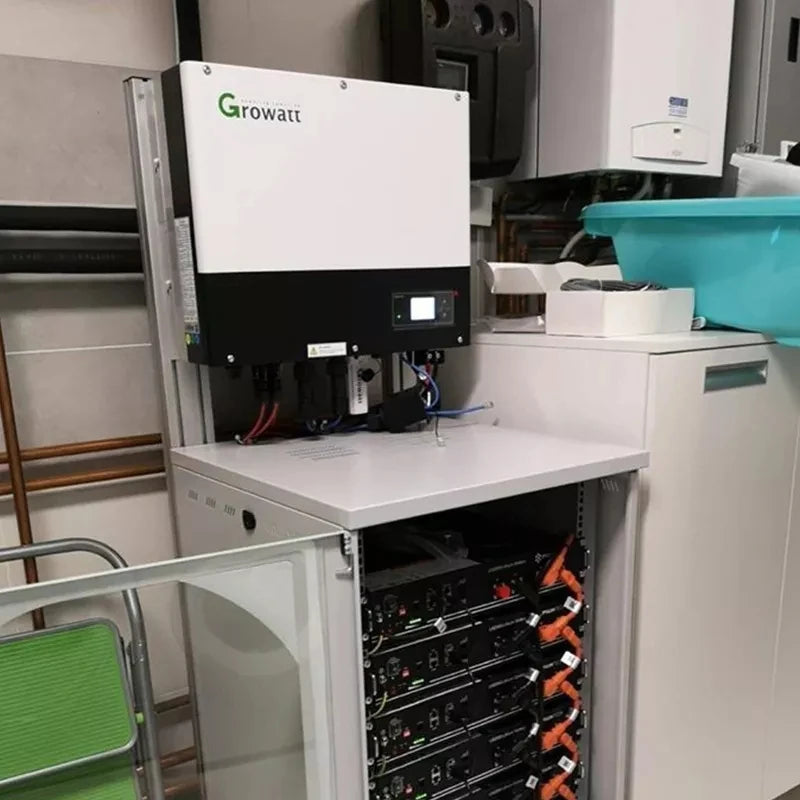

Project Case Projektfall
KEY FEATURES
Leading Functions
- UPS function, 10ms transition
- Scalable system available
- Scalable system available
High Yields
- DC/AC ratio up to 2.0
- Dual MPP trackers
- Dual MPP trackers
System Flexibility
- Support lithium and lead-acid battery
- VPP interface ready
- Smart load control via dry contact
- VPP interface ready
- Smart load control via dry contact
Related Products
ON GRID INVERTER
OFF GRID INVERTER
SOLAR PANEL
BATTERY
HYBRID INVERTER
Company Profile
Jiaxing Feiya New Energy Co., Ltd.
Jiaxing Feiya New Energy Co., Ltd.is located in Jiaxing City, Zhejiang Province, China. It is a company specializing in the sales and service of solar panels, solar systems and inverters. We have our own brand – F Y solar, and have long-term cooperation with many brands to provide customers with more comprehensive choices. So far, our solar energy series products have been sold well in all provinces and cities across the country, and exported to Europe, Asia, Africa, the Middle East and other countries and regions, completing a large number of family, commercial and industrial supporting services. Due to the excellent product quality and remarkable performance, it is well received by customers. We take integrity, quality and professionalism as our corporate tenet, and wholeheartedly provide customers with thoughtful services, and are committed to providing customers with cost-effective high-performance solar modules, so that enterprises can always remain competitive in the fierce market competition and achieve rapid and stable development of enterprises.
FAQ
Q1: How to insatll and use the solar system?
A1: We have the English teaching manual and videos;All the videos about every step of solar system Disassembly, assembly,operation will be sent to our customers.
A1: We have the English teaching manual and videos;All the videos about every step of solar system Disassembly, assembly,operation will be sent to our customers.
Q2: How is your technical support?
A2: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
A2: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q3: Can you get the the solar system customized for us ?
A3: Of course, brand name, solar panel color, designed unique patterns available for customization.
A3: Of course, brand name, solar panel color, designed unique patterns available for customization.
In 5 years ,More than 100 colleagues ,more than 1,800 days and nights, Continuously to lead the field of renewable energy
More than 20 countries like US, UK, Russia, Lebanon, Italy, Germany, Spain, France, Australia, South Africa,Turkey, Netherlands, Poland, Sweden,etc selected our products in last few years, and more and more customers all over the world choose us year by year.
6 oversea warehouses in Spain, Poland, Russia, USA, Brazil, UAE help us to ship goods to customers in 3 days without Customs tax. More than 10 agents in Lebanon, Poland, Finland, Belgium, Turkey, Hungary, etc could support more and more customers all over the world. Feel free to contact us if you have any interest or request.
We're committed to providing future generations with the means to power their lives in the most economic, environmental and socially responsible ways possible.

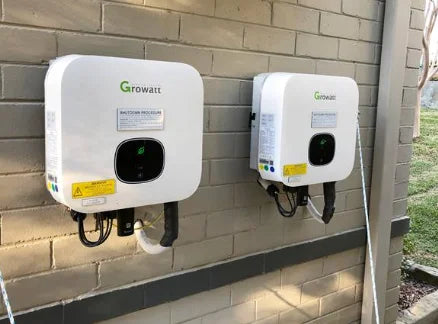

Projects we have completed
1. Q: Does the System Installation Easy?
A:Very easy, every customer can do it by themselves, we will supply all the components for installation and very detailed manual for you. If you still have confusion, our technician could support you all the time by video to make sure there is no mistake of connection.
2.Q: Distance between wind turbine, controller and battery?
A: Normally better within 10m from wind turbine to controller, and controller to batteries, Batteries and inverter to load within 20-50m.
3.Q: For horizontal axis wind turbines VS vertical axis wind turbines, which kind of efficiency is better?
A:For same watts at same wind speed, the output of horizontal axis wind turbines is more efficient than that of vertical axis wind turbines. But if your wind speed is very low, we suggest you to use our vertical SS type.If your wind speed is over 8m/s, our vertical wind turbine are also with around 80-90% efficiency. No noise is the most popular points.
4. Q:Does our wind is enough for a wind generator?
A: Please contact our sales with following points:
1. What appliance do you want to running by the system? How many watts are they and their working time.
2. Your annual average wind speed .you could check on google with your exact site
3. What kinds of system do you want ?On-grid or off-grid?
5. Q:Can i buy full wind and solar system from you?
A: Sure, Smaraad is a one stop energy solution provider, we have qualified technician team to design for your system, including wind turbine,solar panel system and storage system, we will provide clear installation instruction and you only need to ask a echnician to install it for you. And most of parts, we have warehouse in Poland, Russian, Spain and USA.
6. Q: If your products have CE certificated?
A: Sure, our products have sold to more than 40 countries and our products have been approved by local rules and test very good function.
A:Very easy, every customer can do it by themselves, we will supply all the components for installation and very detailed manual for you. If you still have confusion, our technician could support you all the time by video to make sure there is no mistake of connection.
2.Q: Distance between wind turbine, controller and battery?
A: Normally better within 10m from wind turbine to controller, and controller to batteries, Batteries and inverter to load within 20-50m.
3.Q: For horizontal axis wind turbines VS vertical axis wind turbines, which kind of efficiency is better?
A:For same watts at same wind speed, the output of horizontal axis wind turbines is more efficient than that of vertical axis wind turbines. But if your wind speed is very low, we suggest you to use our vertical SS type.If your wind speed is over 8m/s, our vertical wind turbine are also with around 80-90% efficiency. No noise is the most popular points.
4. Q:Does our wind is enough for a wind generator?
A: Please contact our sales with following points:
1. What appliance do you want to running by the system? How many watts are they and their working time.
2. Your annual average wind speed .you could check on google with your exact site
3. What kinds of system do you want ?On-grid or off-grid?
5. Q:Can i buy full wind and solar system from you?
A: Sure, Smaraad is a one stop energy solution provider, we have qualified technician team to design for your system, including wind turbine,solar panel system and storage system, we will provide clear installation instruction and you only need to ask a echnician to install it for you. And most of parts, we have warehouse in Poland, Russian, Spain and USA.
6. Q: If your products have CE certificated?
A: Sure, our products have sold to more than 40 countries and our products have been approved by local rules and test very good function.
7. Q: The delivery date for each type?
A:Normally for wind turbine below 1kw, we have stock in China or in Our warehouse in EU, Russian, so it could delivery within 1-3days after payment received
A:Normally for wind turbine below 1kw, we have stock in China or in Our warehouse in EU, Russian, so it could delivery within 1-3days after payment received
8. Q: If we could be your agent or distributor?
A: Please talk with our sales for this, our company are warmly welcome more partner to join us, but you have to double check for some area we have agents already.
A: Please talk with our sales for this, our company are warmly welcome more partner to join us, but you have to double check for some area we have agents already.
9. Q:How can I sell electricity to the grid?
A：Every country has different policies and schemes regarding energy export and selling to the grid. Rules change from government to government, so we recommend you investigate your local country's requirements in detail.
As a general direction, it is possible and supported to sell surplus power generated from your wind turbines and solar panels to the national grid in many countries in the World. You should register under the relevant energy export scheme through your energy supplier in your country. After the registration, you'll get paid for every unit of electricity you feed back to the grid.
Powering homes: our global renewable energy footprint
Witness our renewable energy solutions in action. Trusted by clients worldwide, our wind and solar systems illuminate a brighter future. Your energy transition begins here.
Powering homes: our globalrenewable energy footprint
Witness our renewable energy solutions in action. Trusted by clients worldwide, our wind and solar systems illuminate a brighter future. Your energy transition begins here.
Unveiling Our Company and Factory
Exploring our world-class facilities and dedicated team, bridging trust and innovation. Join hands with a global force in renewable energy

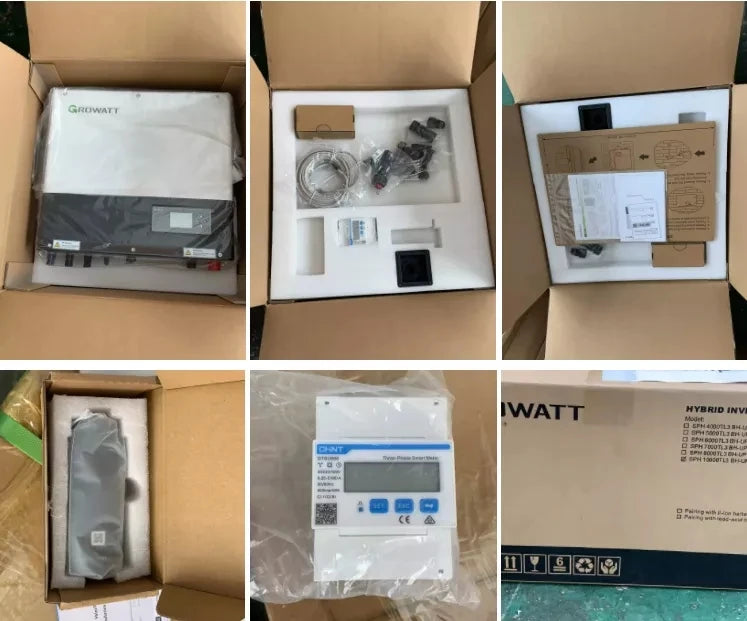

Precision in Every Package: Careful Craftsmanship at Every Step
